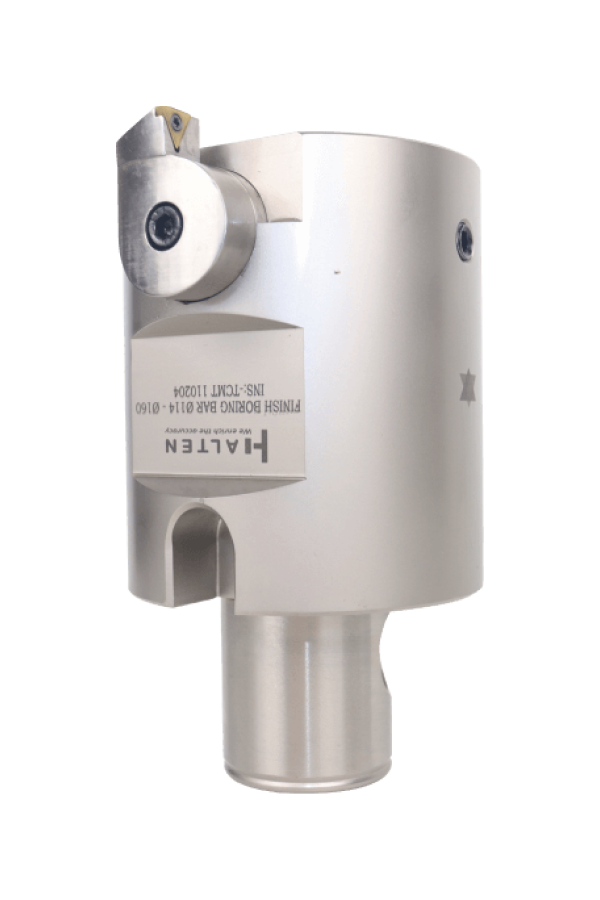

Fine Boring Bars (FBB)

  • It is easy for seeing fine bores with adjustment having LC 2µ on Vernier scale.
  • It is perfectly balanced to achieve cylindricity for long boring applications by using extensions.
  • Replaceable insert reduces production cost.
  • large dial disc for easy reading of adjustment Vernier.
Adjustable Boring Bar
Adjustable Boring Bar
Fine Boring Head Range 'D' Std. Length 'L' Cartridge Insert
HFB-2035-32-CC06 20-35 32 FC-2035-CC06 CC.. 060204
HFB-2546-35-TC09 25-46 35 FC-2546-TC09 TC.. 090204
HFB-3261-40-TC11 32-61 40 FC-3261-TC11 TC..110204
HFB-4175-47-TC11 41-75 47 FC-4175-TC11 TC..110204
HFB-5296-57-TC16 52-96 57 FC-5296-TC16 TC..16T308
HFB-70151-71-TC16 70-151 71 FC-70151-TC16 TC..16T308
HFB-98202-71-TC16 98-202 71 FC-98202-TC16 TC..16T308

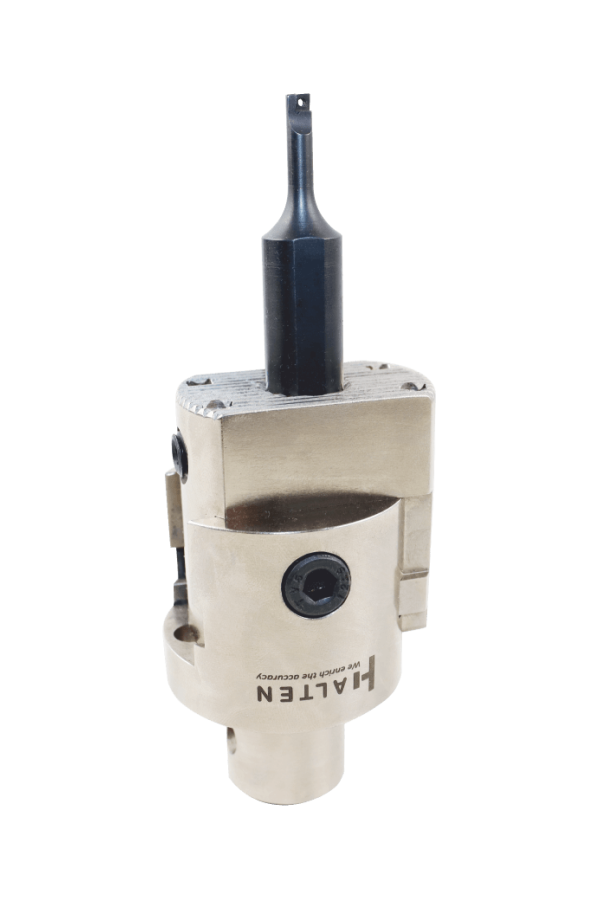

Boring kit

  • Least count 2µ on Vernier scale.
  • Available sizes from ⌀6 to ⌀200 in ISO insert(TPGT , WBMT)
  • Easy to use for various diameter range with easy size setting with better perfomance
Adjustable Boring Bar
Adjustable Boring Bar
