Micro Boring Units

  • Micro Boring Units are precision tools for mounting into standard or special boring tools.
  • It is capable of machining close tolerances
  • These units are pre-tensioned to eliminate backlash.
  • It allows adjustments only to be made from front of the unit.
Mounting View Products Code Insert Dimensions/mm
LH/RH Dmin Da L1 F1
Mounting View 1 HTF01-L/R-A-06T1 TC-06T1 25 16 14.3 0.2
HTF02-L/R-A-0602 CC-0602 26 16 14.5 0.45
HTF03-L/R-A-0902 TC-0902 33.1 20 19.1 0.9
HTF04-L/R-A-1102 TC-1102 42.6 22 23 1.1
HTF05-L/R-A-16T3 TC-16T3 69 32 33 1.1
HTF06-L/R-A-09T3 CC-09T3 42.6 23 23 1.2
HTFV16-L/R-A-0902 TC-0902 22 15 9 1
Mounting View 2 HTF11-L/R-V-0602 CC-0602 27.6 16 13.3 5.1
HTF12-L/R-V-0902 TC-0902 37.1 18 22.1 6.3
HTF13-L/R-V-1102 TC-1102 42 22.1 22.1 7.2
HTF14-L/R-V-16T3 TC-16T3 69 32 33 12.3
HTF15-L/R-V-09T3 CC-09T3 49.1 22.1 22.1 7.2

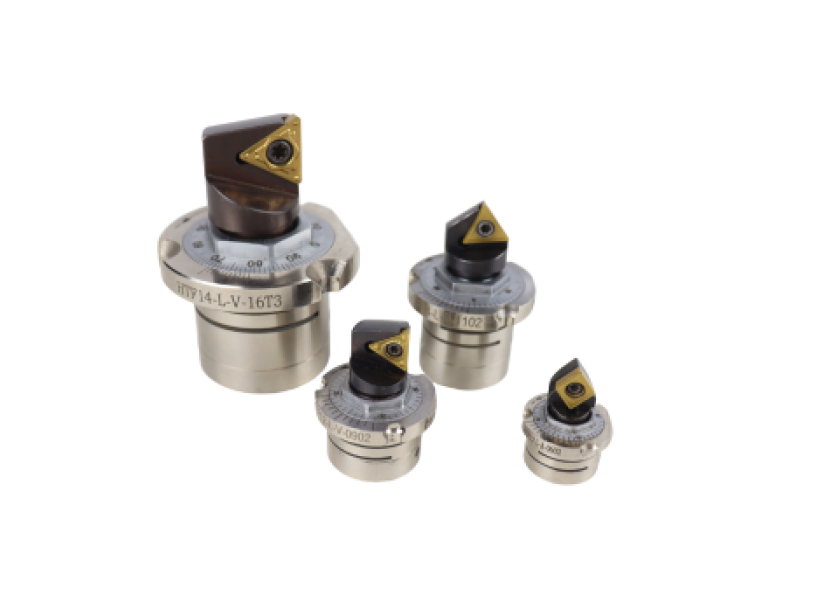

A-type Tool Holder

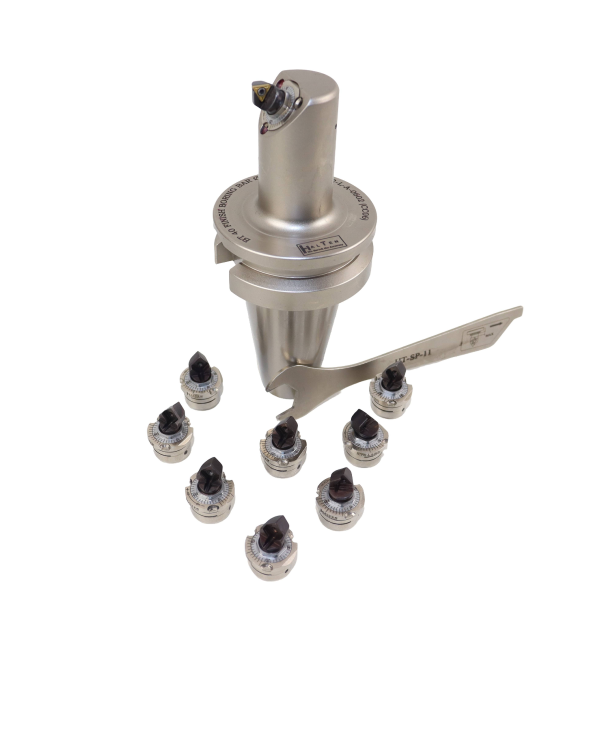

A-type Tool Holder
